NS-3

License

https://www.nsnam.org/about/

  • GNU GPL Version 2.0

Installation on Linux/Ubuntu (Version NS-3.42)

https://www.nsnam.org/wiki/Installation
https://www.nsnam.org/docs/installation/singlehtml/
https://www.nsnam.org/docs/tutorial/html/getting-started.html
https://www.nsnam.org/docs/release/3.42/installation/html/

Prerequisites

## Minimal Requirement
sudo apt install g++ python3 cmake ninja-build git
## Recommended for Compiler Cache Optimization
sudo apt install ccache

Optional Components

## Python Visualizer and Bindings
python3 -m pip install --user cppyy
#python3 -m pip install --user cppyy==2.4.2
sudo apt install gir1.2-goocanvas-2.0 python3-gi python3-gi-cairo python3-pygraphviz gir1.2-gtk-3.0 ipython3
## Python Development
sudo apt install python3-setuptools git
## Netanim Animator
sudo apt install qtbase5-dev qtchooser qt5-qmake qtbase5-dev-tools
sudo apt install qt5-default
## PyViz Visualizer
sudo apt install gir1.2-goocanvas-2.0 python3-gi python3-gi-cairo python3-pygraphviz gir1.2-gtk-3.0 ipython3
## MPI-Based Distributed Emulation
sudo apt install openmpi-bin openmpi-common openmpi-doc libopenmpi-dev
## Bake Build Tool
sudo apt install mercurial unzip
## Debugging
sudo apt install gdb valgrind
## Code Style Check
sudo apt install clang-format
## Inline Documentation
#sudo apt install doxygen graphviz imagemagick
#sudo apt install texlive texlive-extra-utils texlive-latex-extra texlive-font-utils dvipng latexmk
## Manual and Tutorial
#sudo apt install python3-sphinx dia
## GNU Scientific Library (GSL) for 802.11b WiFi Error Models
sudo apt install gsl-bin libgsl-dev libgslcblas0
## PCAP Packet Traces
sudo apt install tcpdump
## Statistics Framework
sudo apt install sqlite sqlite3 libsqlite3-dev
## Config Store
sudo apt install libxml2 libxml2-dev
## GTK-Based Configuration System
sudo apt install libgtk-3-dev
## Experiment with Virtual Machines
sudo apt install vtun lxc uml-utilities
## Openflow Module and Boost Development Libraries
sudo apt install libxml2 libxml2-dev libboost-all-dev

Installation with Bake

mkdir NS-3
cd NS-3
git clone https://gitlab.com/nsnam/bake
export BAKE_HOME=`pwd`/bake
export PATH=$PATH:$BAKE_HOME
export PYTHONPATH=$PYTHONPATH:$BAKE_HOME
bake.py check
#bake.py configure -e ns-3.42
bake.py configure -e ns-allinone-3.42
bake.py show
## -- System Dependencies --
##  > automake - OK
##  > cmake - OK
##  > cppyy - OK
##  > g++ - OK
##  > gi-cairo - OK
##  > gir-bindings - OK
##  > libxml2-dev - OK
##  > mercurial - OK
##  > pygobject - OK
##  > pygraphviz - OK
##  > python3-dev - OK
##  > qt - OK
bake.py deploy
#bake.py download
#bake.py build
## Downloading, building and installing the selected modules and dependencies.
## Please, be patient, this may take a while!
##  >> Searching for system dependency libxml2-dev - OK
##  >> Downloading click-ns-3.37 - OK
##  >> Searching for system dependency g++ - OK
##  >> Searching for system dependency cppyy - OK
##  >> Searching for system dependency gi-cairo - OK
##  >> Searching for system dependency gir-bindings - OK
##  >> Searching for system dependency pygobject - OK
##  >> Searching for system dependency pygraphviz - OK
##  >> Searching for system dependency python3-dev - OK
##  >> Searching for system dependency qt - OK
##  >> Searching for system dependency cmake - OK
##  >> Searching for system dependency mercurial - OK
##  >> Searching for system dependency automake - OK
##  >> Downloading openflow-dev - OK
##  >> Downloading netanim-3.109 - OK
##  >> Downloading BRITE - OK
##  >> Downloading ns-3.42 (target directory:ns-3.42) - OK
##  >> Building click-ns-3.37 - OK
##  >> Building openflow-dev - OK
##  >> Building netanim-3.109 - OK
##  >> Building BRITE - OK
##  >> Building ns-3.42 - OK

Building with NS-3 CMake Wrapper

cd source/ns-3.42
./ns3 show
## Build profile: default
## ns-3 version: ns-3.42
## Reconfigure with './ns3 configure --enable-build-version' to bake the version into the libraries.
## ---- Summary of ns-3 settings:
## Build profile                 : default
## Build directory               : /home/dai/source/ns-3.42/build
## Build with runtime asserts    : ON
## Build with runtime logging    : ON
## Build version embedding       : OFF (not requested)
## BRITE Integration             : ON
## DES Metrics event collection  : OFF (not requested)
## DPDK NetDevice                : OFF (not requested)
## Emulation FdNetDevice         : ON
## Examples                      : ON
## File descriptor NetDevice     : ON
## GNU Scientific Library (GSL)  : ON
## GtkConfigStore                : ON
## LibXml2 support               : ON
## MPI Support                   : OFF (not requested)
## ns-3 Click Integration        : ON
## ns-3 OpenFlow Integration     : ON
## Netmap emulation FdNetDevice  : OFF (missing dependency)
## PyViz visualizer              : OFF (missing Python Bindings)
## Python Bindings               : OFF (missing dependency: cppyy)
## SQLite support                : ON
## Eigen3 support                : OFF (Eigen was not found)
## Tap Bridge                    : ON
## Tap FdNetDevice               : ON
## Tests                         : ON
##
## Modules configured to be built:
## antenna                   aodv                      applications
## bridge                    brite                     buildings
## click                     config-store              core
## csma                      csma-layout               dsdv
## dsr                       energy                    fd-net-device
## flow-monitor              internet                  internet-apps
## lr-wpan                   lte                       mesh
## mobility                  netanim                   network
## nix-vector-routing        olsr                      openflow
## point-to-point            point-to-point-layout     propagation
## sixlowpan                 spectrum                  stats
## tap-bridge                test                      topology-read
## traffic-control           uan                       virtual-net-device
## wifi                      wimax
##
## Modules that cannot be built:
## mpi                       visualizer
##
## ---- Summary of buildable targets:
## Buildable targets:            80
## Runnable/Buildable targets:  294
#./ns3 configure --enable-examples --enable-tests
./ns3 configure --enable-examples --enable-tests --enable-python-bindings
./ns3 build

Troubleshooting - Cppyy Missing Dependency

## -- Bindings: python bindings disabled due to the following missing dependencies: cppyy

To be investigated; using pip and netanim would be alternatives.

Troubleshooting - Bindings Install Directory

## -- NS3_BINDINGS_INSTALL_DIR was not set. The python bindings won't be installed with ./ns3 install. This setting is meant for packaging and redistribution.
## -- Set NS3_BINDINGS_INSTALL_DIR="/home/user/.local/lib/python3.8/site-packages" to install it to the default location.

To be investigated; just ignoring this warning for the moment.

Python Bindings

https://www.nsnam.org/docs/manual/html/python.html

pip install --user ns3

Troubleshooting - No Matching Distribution

## ERROR: Could not find a version that satisfies the requirement ns3 (from versions: none)
## ERROR: No matching distribution found for ns3
pip install --upgrade setuptools

Test

./test.py
## [  0%] Building CXX object src/antenna/CMakeFiles/libantenna-obj.dir/model/circular-aperture-antenna-model.cc.o
## [  0%] Building CXX object src/antenna/CMakeFiles/libantenna-obj.dir/model/angles.cc.o
## [  0%] Building CXX object src/antenna/CMakeFiles/libantenna-obj.dir/model/antenna-model.cc.o
## [  0%] Building CXX object src/antenna/CMakeFiles/libantenna-obj.dir/model/cosine-antenna-model.cc.o
## [  0%] Building CXX object src/antenna/CMakeFiles/libantenna-obj.dir/model/isotropic-antenna-model.cc.o
## ...
## [773/780] PASS: Example src/buildings/examples/buildings-pathloss-profiler
## [774/780] PASS: Example src/buildings/examples/outdoor-group-mobility-example --useHelper=0
## [775/780] PASS: Example src/buildings/examples/outdoor-group-mobility-example --useHelper=1
## [776/780] PASS: Example src/brite/examples/brite-generic-example
## [777/780] PASS: Example src/bridge/examples/csma-bridge
## [778/780] PASS: Example src/bridge/examples/csma-bridge-one-hop
## [779/780] PASS: Example src/aodv/examples/aodv
## 780 of 780 tests passed (780 passed, 0 skipped, 0 failed, 0 crashed, 0 valgrind errors)

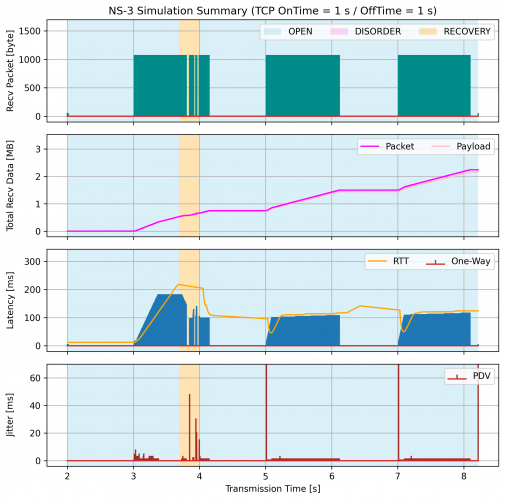

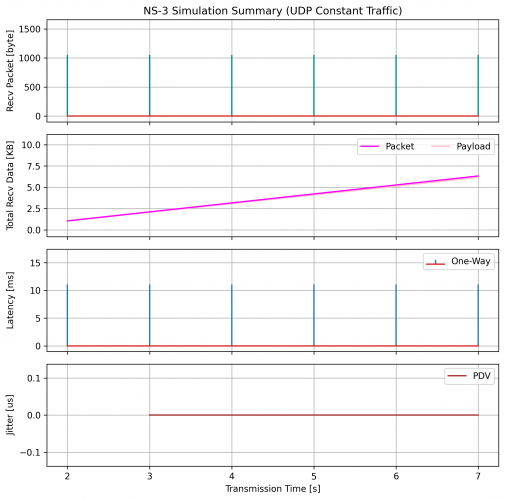

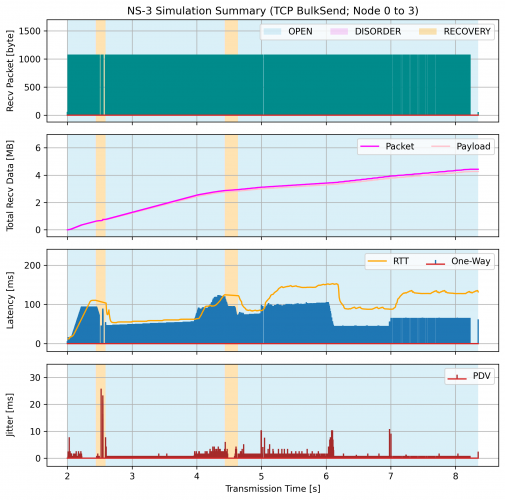

Tutorials

https://www.nsnam.org/docs/release/3.42/tutorial/html/

Hello Simulator

./ns3 run hello-simulator
## [  0%] Building CXX object examples/tutorial/CMakeFiles/hello-simulator.dir/hello-simulator.cc.o
## [  0%] Linking CXX executable ../../../build/examples/tutorial/ns3.42-hello-simulator-default
## Hello Simulator

First: Point to Point

## Default Network Topology
##       10.1.1.0
## n0 -------------- n1
##    point-to-point
./ns3 run first
## [  0%] Building CXX object examples/tutorial/CMakeFiles/first.dir/first.cc.o
## [  0%] Linking CXX executable ../../../build/examples/tutorial/ns3.42-first-default
## At time +2s client sent 1024 bytes to 10.1.1.2 port 9
## At time +2.00369s server received 1024 bytes from 10.1.1.1 port 49153
## At time +2.00369s server sent 1024 bytes to 10.1.1.1 port 49153
## At time +2.00737s client received 1024 bytes from 10.1.1.2 port 9


Python

python3 ./examples/tutorial/first.py
## At time +2s client sent 1024 bytes to 10.1.1.2 port 9
## At time +2.00369s server received 1024 bytes from 10.1.1.1 port 49153
## At time +2.00369s server sent 1024 bytes to 10.1.1.1 port 49153
## At time +2.00737s client received 1024 bytes from 10.1.1.2 port 9

Troubleshooting - No Visualizer

https://www.nsnam.org/wiki/PyViz

./ns3 run --vis first
## NS_ASSERT failed, cond="uid != 0", msg="Assert in TypeId::LookupByName: ns3::VisualSimulatorImpl not found", file=source/ns-3.42/src/core/model/type-id.cc, line=840
## NS_FATAL, terminating
## terminate called without an active exception
## Command 'build/examples/tutorial/ns3.42-first-default --SimulatorImplementationType=ns3::VisualSimulatorImpl' died with <Signals.SIGABRT: 6>.
## Check if Python Bindings and PyViz Visualizer are ON
./ns3 show

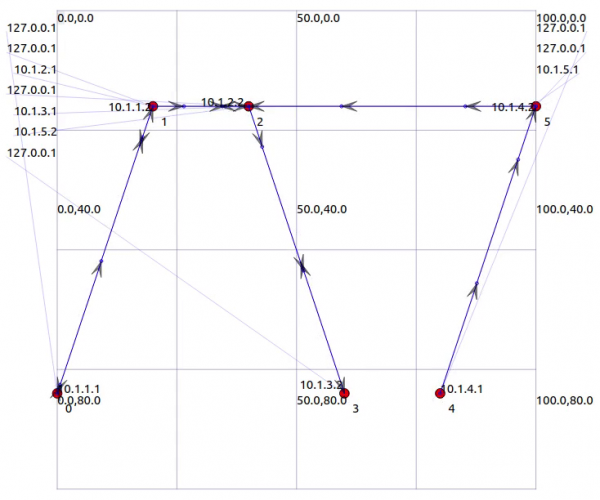

Star Animation

./ns3 run star-animation
../netanim-3.109/NetAnim
## Open star-animation.xml on NetAnim


Dumbbell Animation

./ns3 run dumbbell-animation
../netanim-3.109/NetAnim
## Open dumbbell-animation.xml on NetAnim


References

Network Simulator (NS-3)
https://www.nsnam.org/

https://qiita.com/dorapon2000/items/5c0c0a399aeee629be63
https://qiita.com/bmt/items/b16d90730e9e398774f8
https://qiita.com/haltaro/items/b474d924f63692c155c8
https://qiita.com/RIckyBan/items/37ae69e991c125c5eb5f
