FINN

https://xilinx.github.io/finn/
https://finn.readthedocs.io/
https://github.com/xilinx/finn

https://arxiv.org/abs/1612.07119
https://qiita.com/harmegiddo/items/beb344adddb749c2f1e1
https://www.ntnu.edu/documents/139931/1275097249/eecs-jun17-finn.pdf

https://finn.readthedocs.io/en/latest/getting_started.html#system-requirements

• System Memory: 8-16 GB
• Operating System: Ubuntu 18.04 with Docker and Vitis/Vivado 2022.1

• MNIST Interface (i.e., Gray(1)x28x28)
  • SFC (Small Fully-Connected): Three-layer fully connected network with 256 neurons/layer (+ output-relevant layer)
  • LFC (Large Fully-Connected): Three-layer fully connected network with 1,024 neurons/layer (+ output-relevant layer)
  • TFC (Tiny Fully-Connected): Three-layer fully connected network with 64 neurons/layer (+ output-relevant layer)

• CIFAR-10 Interface (i.e., RGB(3)x32x32)
  • CNV (Convolutional): Convolutional network inspired by BinaryNet and VGG-16

• Pretrained quantized ONNX (or PyTorch) model by Brevitas is necessary for a custom network

sudo apt install zip
sudo apt install unzip

https://finn.readthedocs.io/en/latest/getting_started.html

git clone https://github.com/Xilinx/finn

export FINN_XILINX_PATH="/tools/Xilinx"
export FINN_XILINX_VERSION="2022.1"

## Required for Alveo
export PLATFORM_REPO_PATHS="/opt/xilinx/platforms"

## Environment Setup for Vitis
source /tools/Xilinx/Vitis/2022.1/settings64.sh

## Jupyter (as needed)
export JUPYTER_PORT="8888"

## Netron (as needed)
export LOCALHOST_URL="[IPADDR]"
export NETRON_PORT="8081"

cd ~/finn

./run-docker.sh quicktest

Running test suite (non-Vivado, non-slow tests)
Docker container is named finn_dev_user
Docker tag is named xilinx/finn:v0.9-2-gb3bdff11.xrt_202210.2.13.466_18.04-amd64-xrt
Mounting /tmp/finn_dev_user into /tmp/finn_dev_user
Mounting /opt/Xilinx into /opt/Xilinx
Port-forwarding for Jupyter 8888:8888
Port-forwarding for Netron 8081:8081
Vivado IP cache dir is at /tmp/finn_dev_user/vivado_ip_cache
Using default PYNQ board Pynq-Z1
Successfully checked out qonnx at commit dd35a8ff49d7225a07ffceeebe25a6361df48349
Successfully checked out finn-experimental at commit 9cbd2787b5160e2b44e0e8164a0df1457dbd5366
Successfully checked out brevitas at commit a5b71d6de1389d3e7db898fef72e014842670f03
Successfully checked out pyverilator at commit 766e457465f5c0dd315490d7b9cc5d74f9a76f4f
Successfully checked out cnpy at commit 4e8810b1a8637695171ed346ce68f6984e585ef4
Successfully checked out finn-hlslib at commit d27f6b6c5d8f1bb208db395659389603f63ad4be
Successfully checked out oh-my-xilinx at commit d1065a788219ca0eb54d5e57600b1f9d7f67d4cc
Successfully checked out avnet-bdf at commit 2d49cfc25766f07792c0b314489f21fe916b639b
Already up to date.
...
tests/brevitas/test_brevitas_mobilenet.py::test_brevitas_mobilenet
[gw0] [ 27%] XPASS tests/brevitas/test_brevitas_mobilenet.py::test_brevitas_mobilenet
...
tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-1-1]
[gw0] [ 74%] XFAIL tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-1-1]
tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-1-2]
[gw0] [ 74%] XFAIL tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-1-2]
tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-2-1]
[gw0] [ 74%] XFAIL tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-2-1]
tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-2-2]
[gw0] [ 74%] XFAIL tests/transformation/test_qonnx_to_finn.py::test_QONNX_to_FINN[mobilenet-2-2]
...
Docs: https://docs.pytest.org/en/stable/how-to/capture-warnings.html
1285 passed, 256 skipped, 4 xfailed, 1 xpassed, 73670 warnings in 385.58s (0:06:25)

https://zenn.dev/imaki/scraps/8e70706f595cdb

• PASSED
• FAILED
• SKIPPED
• XFAIL: Expected Failure
• XPASS: Unexpected Passing
• ERROR

https://stackoverflow.com/questions/63277123/what-does-the-error-message-about-pip-use-feature-2020-resolver-mean
https://note.com/npaka/n/n92580a746f2d

## ERROR: After October 2020 you may experience errors when installing or updating packages.
## This is because pip will change the way that it resolves dependency conflicts.
## We recommend you use --use-feature=2020-resolver to test your packages with the new resolver before it becomes the default.

cd ~/finn/docker

vi finn_entrypoint.sh
======================================================
pip install --user -e ${FINN_ROOT}/deps/qonnx --use-feature=2020-resolver
======================================================

https://github.com/Xilinx/finn/releases/tag/v0.9

FINN v0.9 was released early 2023 and configured with dependent packages of around end 2022

## ERROR: referencing 0.30.0 requires attrs>=22.2.0, but you'll have attrs 19.3.0 which is incompatible.
## jsonschema 4.18.4 requires attrs>=22.2.0, but you'll have attrs 19.3.0 which is incompatible.

cd ~/finn/deps/qonnx

## Adding following dependencies to install_requires
vi setup.cfg
======================================================
install_requires =
    referencing==0.8.11
    jsonschema==4.17.3
    jsonschema-specifications==2022.12.3
    jupyter-events==0.6.3
======================================================

cd ~/finn

## Run Docker Container (or with Jupyter Notebook)
#bash ./run-docker.sh
bash ./run-docker.sh notebook

Running Jupyter notebook server
Docker container is named finn_dev_user
Docker tag is named xilinx/finn:v0.9-2-gb3bdff11-dirty.xrt_202210.2.13.466_18.04-amd64-xrt
Mounting /tmp/finn_dev_user into /tmp/finn_dev_user
Mounting /tools/Xilinx into /tools/Xilinx
Port-forwarding for Jupyter 8888:8888
Port-forwarding for Netron 8081:8081
Vivado IP cache dir is at /tmp/finn_dev_user/vivado_ip_cache
Using default PYNQ board Pynq-Z1
...
Found Vitis at /tools/Xilinx/Vitis/2022.1
...
Found XRT at /opt/xilinx/xrt
Found Vitis HLS at /tools/Xilinx/Vitis_HLS/2022.1

## Run Jupyter Notebook in Docker with Port Forwarding (as needed)
#jupyter notebook --allow-root --no-browser --ip=0.0.0.0 --port=8888

[I 02:43:03.433 NotebookApp] Writing notebook server cookie secret to /tmp/...
...
To access the notebook, open this file in a browser:
    file:///tmp/home_dir/.local/share/jupyter/runtime/nbserver-6-open.html
Or copy and paste one of these URLs:
    http://finn_dev_user:8888/?token=abcdefg
 or http://127.0.0.1:8888/?token=abcdefg

http://127.0.0.1:8888/?token=abcdefg

https://github.com/Xilinx/finn/blob/main/notebooks/end2end_example/bnn-pynq/tfc_end2end_example.ipynb

Run All on tfc_end2end_example.ipynb

• The ZynqBuild process is killed with only 4GB of a system memory (i.e., n1-standard-1 on GCP)
• The ZynqBuild process takes about 45-60 minutes on a virtual machine with 2 vCPUs (i.e., n1-standard-2 on GCP)

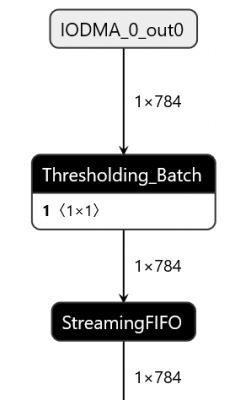

Original Network = Post Synthesis =

Update the following part beginning of the jupyter notebook as below:

## Comment out the line to disable getting the pretrained model from GitHub
#tfc = get_test_model_trained("TFC", 1, 1)

## Add following lines to load a custom model trained by PyTorch/Brevitas
import torch
from brevitas_examples.bnn_pynq.models import model_with_cfg
model, cfg = model_with_cfg('TFC_1W1A', False)
model.load_state_dict(torch.load(build_dir+'/brevitas/checkpoints/best.tar')['state_dict'])
model.eval()
tfc = model

[IMPORTANT] Use brevitas.onnx.export_finn_onnx (not torch.onnx.export) to export a PyTorch model to ONNX for FINN !!!

Update the following part before the ZynqBuild section of the jupyter notebook as below:

## Original TFC: 3 layers of 64 neurons (+ output)
config = [
    (16, 49, [16], [64], "block"),
    (8, 8, [64], [64], "auto"),
    (8, 8, [64], [64], "auto"),
    (10, 8, [64], [10], "distributed"),
]

## Update Network Example: 4 layers of 32 neurons (+ output)
config = [
    (16, 49, [16], [32], "block"),
    (8, 8, [32], [32], "auto"),
    (8, 8, [32], [32], "auto"),
    (8, 8, [32], [32], "auto"),
    (10, 8, [32], [10], "distributed"),
]

## ERROR: [Common 17-55] 'set_property' expects at least one object.
## Resolution: If [get_<value>] was used to populate the object, check to make sure this command returns at least one valid object.
## ...
## Exception: CreateStitchedIP failed, no wrapper HDL found under StreamingDataflowPartition_0_wrapper.v
## Please check logs under the parent directory.

This error occurs when ZynqBuild is performed at the step 21 of this tutorial with incompatible Vitis/Vivado 2023.1 (as of July 2023)
Check if Vitis/Vivado versions just follow system requirements; no error with compatible 2022.1

## /tools/Xilinx/Vivado/2022.1/bin/loader: line 312:  1033 Killed    "$RDI_PROG" "$@"

The 'Killed' message indicates that the process was immediately terminated by the operating system via SIGKILL signal
The host machine needs more system memory; see OoM Killer for more details
Another workaround is preparing additional swap memory: see Swap for instructions

## Copy and Unzip
unzip deploy-on-pynq-tfc.zip -d finn-tfc-demo
cd finn-tfc-demo

## Deployment on PYNQ Board
sudo python3 -m pip install bitstring
sudo python3 driver.py --exec_mode=execute --batchsize=1 --bitfile=resizer.bit --inputfile=input.npy

## Validating Accuracy: installing dataset_loading.git takes about 1-2 hours on PYNQ-Z1
sudo pip3 install git+https://github.com/fbcotter/dataset_loading.git@0.0.4#egg=dataset_loading
sudo python3 validate.py --dataset mnist --batchsize 1000

## Original TFC: 3 layers of 64 neurons (pretrained model via GitHub)
batch 1 / 10 : total OK 913 NOK 87
batch 2 / 10 : total OK 1800 NOK 200
batch 3 / 10 : total OK 2714 NOK 286
batch 4 / 10 : total OK 3619 NOK 381
batch 5 / 10 : total OK 4535 NOK 465
batch 6 / 10 : total OK 5488 NOK 512
batch 7 / 10 : total OK 6438 NOK 562
batch 8 / 10 : total OK 7399 NOK 601
batch 9 / 10 : total OK 8371 NOK 629
batch 10 / 10 : total OK 9296 NOK 704
Final accuracy: 92.960000

## Update Network Example: 4 layers of 32 neurons (training of only 1 epoch)
batch 1 / 10 : total OK 731 NOK 269
batch 2 / 10 : total OK 1432 NOK 568
batch 3 / 10 : total OK 2136 NOK 864
batch 4 / 10 : total OK 2856 NOK 1144
batch 5 / 10 : total OK 3539 NOK 1461
batch 6 / 10 : total OK 4326 NOK 1674
batch 7 / 10 : total OK 5101 NOK 1899
batch 8 / 10 : total OK 5878 NOK 2122
batch 9 / 10 : total OK 6705 NOK 2295
batch 10 / 10 : total OK 7461 NOK 2539
Final accuracy: 74.610000

## Throughput Test
sudo python3 driver.py --exec_mode=throughput_test --batchsize=1000 --bitfile=resizer.bit

## Original TFC: 3 layers of 64 neurons
Results written to nw_metrics.txt
{
  'runtime[ms]': 1.2881755828857422,
  'throughput[images/s]': 776291.6898019619,
  'DRAM_in_bandwidth[MB/s]': 608.612684804738,
  'DRAM_out_bandwidth[MB/s]': 0.7762916898019618,
  'fclk[mhz]': 100.0,
  'batch_size': 1000,
  'fold_input[ms]': 0.13446807861328125,
  'pack_input[ms]': 0.09417533874511719,
  'copy_input_data_to_device[ms]': 5.630970001220703,
  'copy_output_data_from_device[ms]': 0.270843505859375,
  'unpack_output[ms]': 0.9636878967285156,
  'unfold_output[ms]': 0.17762184143066406
}

## Update Network Example: 4 layers of 32 neurons
Results written to nw_metrics.txt
{
  'runtime[ms]': 1.2898445129394531,
  'throughput[images/s]': 775287.2458410352,
  'DRAM_in_bandwidth[MB/s]': 607.8252007393714,
  'DRAM_out_bandwidth[MB/s]': 0.7752872458410351,
  'fclk[mhz]': 100.0,
  'batch_size': 1000,
  'fold_input[ms]': 0.1392364501953125,
  'pack_input[ms]': 0.09179115295410156,
  'copy_input_data_to_device[ms]': 5.3615570068359375,
  'copy_output_data_from_device[ms]': 0.2675056457519531,
  'unpack_output[ms]': 1.0402202606201172,
  'unfold_output[ms]': 0.1819133758544922
}

https://discuss.pynq.io/t/pynq-z2-on-pynq-release-3-0-1/4882

## Traceback (most recent call last):
##   File "/home/xilinx/finn/finn-tfc-demo/driver.py", line 34, in <module>
##     from driver_base import FINNExampleOverlay
##   File "/home/xilinx/finn/finn-tfc-demo/driver_base.py", line 32, in <module>
##     from pynq import Overlay, allocate
## ModuleNotFoundError: No module named 'pynq'

## Add following lines to driver.py so that pynq is available as root also:
vi driver.py
======================================================
import sys
sys.path.append("/usr/local/share/pynq-venv/lib/python3.10/site-packages")
======================================================

## Another workaround:
sudo -s
source /usr/local/share/pynq-venv/bin/activate
#export XILINX_XRT="/usr"

https://discuss.pynq.io/t/pynq-z2-on-pynq-release-3-0-1/4882
https://discuss.pynq.io/t/error-no-device-found-when-loading-overlay/2989/6

## /usr/local/share/pynq-venv/lib/python3.10/site-packages/pynq/pl_server/device.py:56: UserWarning: No devices found, is the XRT environment sourced?
##   warnings.warn(
## Traceback (most recent call last):
##   File "/home/xilinx/finn/finn-tfc-demo/driver.py", line 78, in <module>
##     accel = FINNExampleOverlay(
##   File "/home/xilinx/finn/finn-tfc-demo/driver_base.py", line 80, in __init__
##     super().__init__(bitfile_name, download=download, device=device)
##   File "/usr/local/share/pynq-venv/lib/python3.10/site-packages/pynq/overlay.py", line 315, in __init__
##     super().__init__(bitfile_name, dtbo, partial=False, device=device)
##   File "/usr/local/share/pynq-venv/lib/python3.10/site-packages/pynq/bitstream.py", line 88, in __init__
##     device = Device.active_device
##   File "/usr/local/share/pynq-venv/lib/python3.10/site-packages/pynq/pl_server/device.py", line 71, in active_device
##     raise RuntimeError("No Devices Found")
## RuntimeError: No Devices Found

## Add following lines to driver.py so that pynq is available as root also:
vi driver.py
======================================================
import os
os.environ["XILINX_XRT"] = "/usr"
======================================================

## Another workaround:
sudo -s
#source /usr/local/share/pynq-venv/bin/activate
export XILINX_XRT="/usr"

https://github.com/Xilinx/finn/blob/main/notebooks/end2end_example/bnn-pynq/cnv_end2end_example.ipynb

Run All on cnv_end2end_example.ipynb

• The ZynqBuild process seems to never end on a virtual machine with 2 vCPUs (i.e., n1-standard-2 on GCP)
• The ZynqBuild process takes about 45-60 minutes on a virtual machine with 4 vCPUs (i.e., n1-standard-4 on GCP)

Original Network = Folded =

## Copy and Unzip
unzip deploy-on-pynq-cnv.zip -d finn-cnv-demo
cd finn-cnv-demo

## Deployment on PYNQ Board
sudo python3 -m pip install bitstring
sudo python3 driver.py --exec_mode=execute --batchsize=1 --bitfile=resizer.bit --inputfile=input.npy

## Validating Accuracy
sudo pip3 install git+https://github.com/fbcotter/dataset_loading.git@0.0.4#egg=dataset_loading
sudo python3 validate.py --dataset cifar10 --batchsize 1000

batch 1 / 10 : total OK 851 NOK 149
batch 2 / 10 : total OK 1683 NOK 317
batch 3 / 10 : total OK 2522 NOK 478
batch 4 / 10 : total OK 3370 NOK 630
batch 5 / 10 : total OK 4207 NOK 793
batch 6 / 10 : total OK 5044 NOK 956
batch 7 / 10 : total OK 5887 NOK 1113
batch 8 / 10 : total OK 6728 NOK 1272
batch 9 / 10 : total OK 7570 NOK 1430
batch 10 / 10 : total OK 8419 NOK 1581
Final accuracy: 84.190000

## Throughput Test
sudo python3 driver.py --exec_mode=throughput_test --batchsize=1000 --bitfile=resizer.bit

Results written to nw_metrics.txt
{
  'runtime[ms]': 500.66256523132324,
  'throughput[images/s]': 1997.3532463685713,
  'DRAM_in_bandwidth[MB/s]': 6.1358691728442505,
  'DRAM_out_bandwidth[MB/s]': 0.0019973532463685713,
  'fclk[mhz]': 100.0,
  'batch_size': 1000,
  'fold_input[ms]': 0.1494884490966797,
  'pack_input[ms]': 0.09703636169433594,
  'copy_input_data_to_device[ms]': 19.453763961791992,
  'copy_output_data_from_device[ms]': 0.25844573974609375,
  'unpack_output[ms]': 0.9322166442871094,
  'unfold_output[ms]': 0.17309188842773438
}

https://marsee101.web.fc2.com/finn.html
https://www.ntnu.edu/documents/139931/1275097249/eecs-jun17-finn.pdf

Daiphys is a professional-service company for research and development of leading-edge technologies in physics and engineering.
Get started accelerating your business through our deep expertise in R&D with AI, quantum computing, and space development; please get in touch with Daiphys today!

Daiphys Technologies LLC - https://www.daiphys.com/
